TMY-1500H Automatic Foil Stamping & Die Cutting Machine Cardboard Corrugated Packaging Box
Product Description
JIGUO TMY-1500H Automatic Hot Stamping Die Cutting Machine. It can be die-cut and stamped in large format with longitudinal and transverse foil pull systems and holograms. High precision, fast speed, convenient operation, fast conversion, durable and stable performance. Features that make this machine one of the best options available
Products Description
| PARAMETER |
| Model | TMY-1500H |
| Max. sheet size | 1500X1105(mm) |
| Min. sheet size | 500X420(mm) |
| Max. die cutting size | 1480X1090(mm) |
| Max.stamping range | 1450X1060(mm) |
| Max.die cutting speed | 5000s/h |
| Sheet thickness | 0.1-3mm(Card paper) ≤4mm(corrugated paper) |
| Die cutting precision | ±0.12mm |
| Stamping tempreture | 20-200℃ |
| Heating plate zone number | 16 |
| NO.of foil rollers | 3 longitudinal / 2 transversal |
| Max.feeding pile height | 1650mm |
| Max.delivery pile height | 1500mm |
| Max.pressure | 350T |
| Total power | 85kw |
| Total weight | 25T |
| Overall dimension | 8800X4900X2800mm |
| Air requirements | 0.8Mpa,>0.36m³/min |
Local Details
1. Feeder
* Automatic feeder with non-stop system, with pallet and cart direct load.
* 4 lift-up and 4 delivery suckers, designed to handle a wide range of materials from pa-per to corrugated board, guarantee the
accuracy, reliability and smoothness of paper feeding.
* Double sheet detector.
2. Register table
* Side-register table with 8 belts.
* 2 register side guides working with pulling and pushing system.
* 4 register front lays, independently adjustable.
3. Press section
* Closed chase with central positioning system device for fast positioning of the die.
* Cutting plate 5 mm thickness.
* Pressure control system, can be easily adjusted through touch screen. It has a securi-ty system to avoid any damage in the press.
* Manual and automatic lubrication system.
* 7 light weight gripper bars.
* Turn-over bracket for cutting chase and honeycomb chase.
* Pneumatic lock and release system for cutting chase and honeycomb plate.
4. Delivery section
* Non-stop device with automatic conveyor at delivery.
5. Longitudinal Shaft
* 3 foil rolls in a high precision longitudinal foil feeding system.
* Air blast foil separation system.
* Foil tensioning system.
6. Transverse shaft
* 2 foil rolls in a high precision transversal foil feeding system.
Application

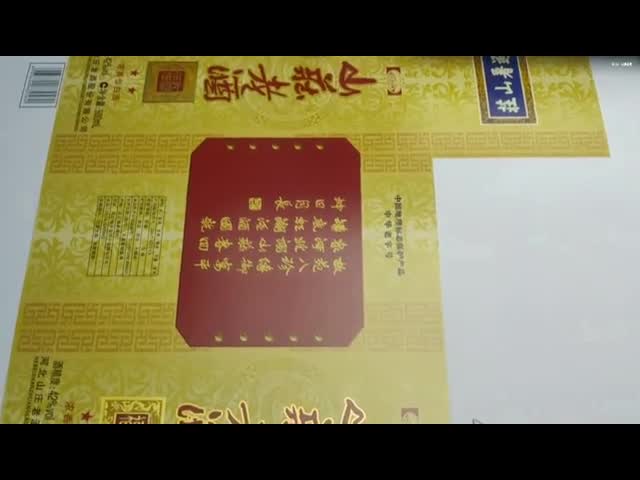

This foil stamping & die-cutting machine is suitable for Cigarette Boxes,Wine Boxes,Plastic
Boxes,Hangtags,Paper Boxes,Corrugated Boxes,etc.
Payment & Delivery
Our company has become an internationally famous enterprises with products sold well all
over the country and exported to over 20 countries, including the United States, South
Korea, Russia, India,Thailand, Brazil, Egypt, Greece, Poland, Italy, UK and so on.
FAQ
1. Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
2. Q: What is your delivery time ?
A: Normal delivery time is 30-55working days beside less stock model after received your deposit .
3. Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
4. Q: How was your machine warranty ?
A: our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply
cost spare parts and free maintenance knowledge .
5. Q: How can you do after sales service ?
A: beside the quality guarantee, our company also regards the after sales service, using a full
arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.
6. Q: What’s your payment terms ?
A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also
accepted for us .
